Disc Pad ID

FMSI # 8515 D1407
Lucas Girling - Meritor D-Elsa
MBS # DSTP1407

Application: Van Hool, Nova, Orion VI, ELSA 1. MAN # 68325011
Hardware Kit: CBPOR6-HK

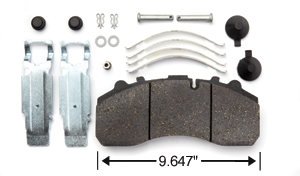

FMSI # 8323 D1203
Knorr Bremse Model SB-7, SN-7
MBS # DSTP1203

Application: Nova Bus, Prevost, Bendix #5013257, Knorr #OR760

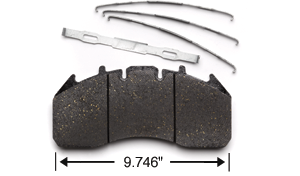

FMSI # 8426 D1311
Meritor EX225 H-2
MBS # DSTP1311

Application: Orion, NABI, ELSA H-2, Meritor #2252H2CD & #MA761GG 11.250" (285mm) wheel

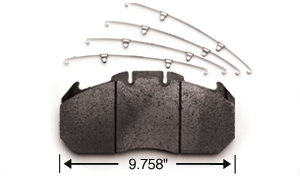

FMSI # 8425 D1310
Meritor EX225 H-2
MBS # DSTP1310

Application: Orion, NABI, ELSA H-2, Meritor #2252H2CD & #MA761GG 11.250" (285mm) wheel

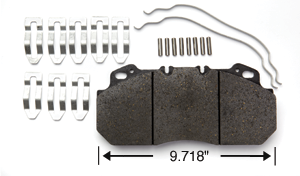

FMSI # 8427 D1312
Lucas Girling - Meritor D-LISA
MBS # DSTP1312

Application: MCI - Renaissance, Meritor #68932068NZP
Hardware Kit: CBPRN01-SMH

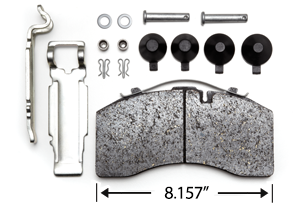

FMSI # 8479 D1369
Knorr Bremse Model SK-7, (ADB22X)
MBS # DSTP1369

Application: Bendix #802078, Hendrickson Trailer Axle

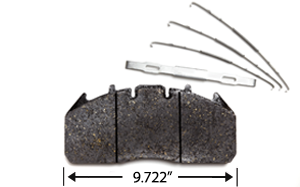

FMSI # 8435 D1323
Meritor EX225 H-3
MBS # DSTP1323

Application: XX, ELSA H-3 Transit, Meritor #2252H3CE, MA721,
3222G2477 13.250"(335mm) wheel
Note: Similar to DSTP1311 but inside radius is smaller

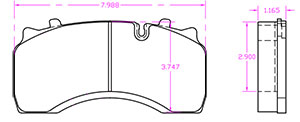

FMSI # 8726 D1517
2002 Mack Truck Freedom
19" Wheels Front & Rear

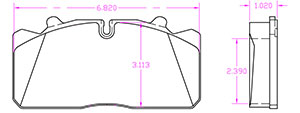

FMSI # 8727 D1518
2002 Mack Truck Freedom
17" Wheels Front & Rear

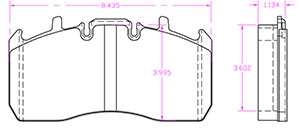

FMSI # 8480 D1370
Meritor EX225 Caliper

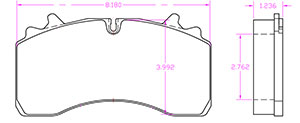

FMSI # 9007 D1777
Wabco Pan 22 Caliper
